Architecture

Big picture

Padas Motion is built around a simple loop inside the Motion Engine (console: Cores; tree: core/):

• Connectors ingest or deliver data
• Streams store and fan out events
• Tasks run PDL (Padas Domain Language) processing to transform, detect, and aggregate

Padas UI is the console and control plane: enroll services, author pipelines, and operate one or more engines. You can also call the engine REST API directly. Management → Control Tower is a screen inside the console (live graph and start/stop on the selected Core)—not a second product and not the whole control plane.

Product family map. Motion ships today as the console plus the nested Motion Engine, with Lookup optional. Catalog, search, and Padas Chronos are emerging and do not ship in the Motion install.

Main components

Padas UI (console)

The console is the control plane: the central management layer for one or more Motion Engine instances. It provides:

• Multi-instance management — configure and control streams, tasks, and connectors across multiple engines from a single interface
• Metrics aggregation and monitoring — collect and visualize throughput, drop rates, and health signals from all managed instances
• Central configuration — deploy and synchronize pipeline configuration across nodes
• Pipeline authoring and testing — build and validate PDL queries and connector configurations before applying them to production

The console communicates with each engine via the REST API Reference (/api/v1).

Motion Engine (processing engine)

The Motion Engine (console: Cores; tree: core/; package: padas-core-*) is the stream processing runtime. Each instance handles:

• Stream lifecycle, buffering, and routing
• Optional per-stream durability via write-ahead log (WAL)
• Task execution (PDL processing and detection)
• Connector runtime (sources and sinks)
• Embedded REST API for local control and data access

The engine is a single binary with no external broker, schema registry, or connector runtime dependencies. Multiple instances can be deployed independently and managed centrally through the console.

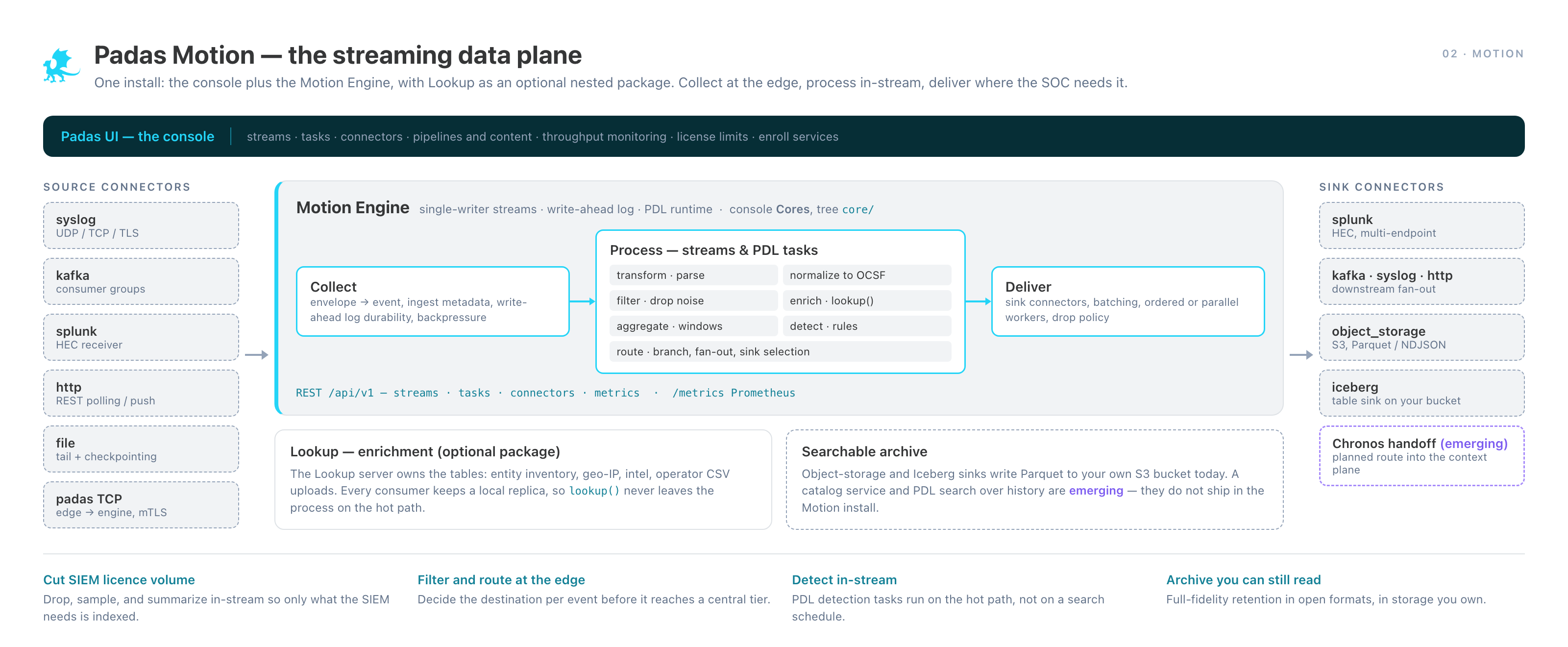

Motion data plane

What ships in Motion today: console, Motion Engine, optional Lookup. Object-storage and Iceberg sinks write Parquet to your bucket. Catalog, PDL search over history, and Chronos handoff are emerging — not Motion SKU members.

Source connectors ingest events into streams; tasks transform, detect, and aggregate; sink connectors deliver results to external systems.

REST API (engine)

Each Motion Engine instance exposes a REST API that serves as both the configuration interface and the event data interface:

• Manage streams, tasks, and connectors (lifecycle CRUD)
• Produce events to a stream
• Consume events from a stream (stateless; client-managed offsets)
• Query a stream using PDL ad-hoc
• Expose Prometheus-compatible metrics for scraping

The console uses this API to manage and monitor engines centrally.

Connectors (I/O boundary)

Connectors are the integration points to external systems. Each connector is configured with a role (source or sink), a target stream, and protocol-specific settings.

Source connectors (ingest):

Connector	Protocol / Format
Syslog	UDP/TCP, RFC 3164/5424, raw lines
HTTP	REST polling or push, JSON
Kafka	Consumer groups, SASL/SSL
File	File tail or batch read
PADAS TCP	MessagePack, cross-node forwarding

Sink connectors (deliver):

Connector	Protocol / Format
Syslog	UDP/TCP syslog forward
HTTP	REST POST, JSON
Kafka	Producer, SASL/SSL
Splunk	Splunk HEC or API
Object Storage	S3-compatible, Parquet or JSON Lines
PADAS TCP	MessagePack, cross-node forwarding

Data flow

Ingestion path (source → stream)

1. A source connector receives data from an external system.
2. It converts it into events (JSON or text).
3. It publishes events to a target stream.

Processing path (stream → task → stream)

1. A task subscribes to a source stream.
2. It runs a PDL pipeline (filter → transform → enrich → aggregate).
3. It publishes results to one or more output streams.

Processing tasks and detection tasks can run concurrently on the same source stream.

Delivery path (stream → sink)

1. A sink connector subscribes to a stream.
2. It batches and forwards events to an external system.

Multiple sink connectors can read from the same stream independently.

Durability and replay (WAL)

Streams can optionally persist data to a write-ahead log (WAL):

• Enables crash recovery: a connector or task can resume from its last committed offset after a restart
• Enables historical reads: clients or tasks can seek to any offset (or earliest) and replay past events
• WAL segments are sealed, indexed with a sparse offset index, and subject to configurable retention (size or time)
• Adds disk I/O overhead, tunable via batch sizes, compression, and retention settings

In-memory streams (no WAL) are suitable for transient fan-out where durability is not required.

Ordering, partitioning, and backpressure

Ordering

The Motion Engine preserves event order within a stream's routing path. For workloads that need strict ordering for windowed aggregation, stream buffers, connector batching, and optional "preserve order" flags let you trade some throughput headroom for ordering guarantees.

Backpressure

Streams use bounded buffers. When a buffer fills, the engine applies one of three strategies (configurable per stream):

Mode	Behavior
Block	Producer waits until space is available
Drop	Events are dropped immediately and counted
Timeout	Producer waits up to a deadline, then drops

Drop and timeout modes are preferred for high-throughput ingestion where backpressure should not stall upstream connectors.

Performance characteristics

The Motion Engine is designed for sustained high-throughput event processing. Actual throughput depends on pipeline complexity: simple filtering and routing runs significantly faster than multi-stage windowed aggregation over high-cardinality fields. WAL persistence, connector I/O, and enrichment lookups each add overhead that varies with configuration and hardware.

Key throughput levers:

• Stream buffer capacity
• Connector worker counts and batch sizes
• WAL compression and batch flushing
• PDL query complexity and enrichment calls

See Configuration & Runtime Engine — Performance Tuning for workload-specific configuration guidance (section placeholder; tuning matrices live in Motion Engine TOML and the Glossary for runtime terms).

Observability

Metrics stream and Prometheus

The engine publishes per-component metrics to _padas_metrics at a configurable interval. The REST API exposes a Prometheus-compatible /metrics endpoint for scraping. Typical signals to monitor:

• padas_stream_events_* — throughput and drop rates per stream
• padas_task_events_* — processing rates per task
• padas_connector_events_* — ingest/delivery rates per connector
• padas_system_* — CPU, memory, and WAL I/O

Internal events stream

_padas_internal receives structured lifecycle and runtime events (connector starts/stops, task errors, WAL segment rotations). These can be consumed like any stream — useful for automating alerts and post-mortems.

Schema strategy: schema-on-read

Motion intentionally ingests data in its original shape and defers normalization:

• Raw syslog lines stay as text payloads until a task parses them
• Structured connector modes decode fields into a reserved ingestion namespace
• PDL tasks can then normalize vendor-specific fields into whatever shape downstream systems expect — common targets include OCSF for security analytics, OpenTelemetry semantic conventions for observability, or internal data models
• Enrichment (geo, asset ownership, threat intel) is applied by PDL tasks that call Lookup

This keeps the ingest edge simple and robust: you don't need a schema contract with every data source upfront.

How Motion extends beyond the engine

The Motion Engine is the streaming runtime. Additional components sit alongside it — the engine does not depend on them:

Component	Role	Status
Lookup	Field enrichment via REST/gRPC; local replica for low-latency lookup()	Nested Motion package; optional
Historical search / catalog	Query past events from object storage (Parquet/S3)	Emerging — not in the Motion install
Padas Chronos (emerging)	Designed to turn processed telemetry into entity context and governed memory	Emerging; not GA; not this install

Where to go next

• Read Core concepts for definitions.
• See the API and connector references for concrete configuration and examples.
• Install Padas Motion.
