Cores

In Padas UI, the console, Services → Cores registers Motion Engine instances (console: Cores; tree: core/): each Core row stores connection settings (host, port) and drives enrollment (service client client_id = core id).

Pipeline and workload placement are not configured here. Use Management → Cores and Management → Pipelines to assign pipelines and related work to an engine. Removing a Core row here unregisters it in the console and removes the linked service client; it does not stop the Motion Engine on the host—confirm nothing in Management still references that registration before you delete.

Overview

This page lets you:

• Register Motion Engine instances the console can manage (host and port).
• Issue enroll / rotate codes so the engine can bind to the console (padas enroll).
• See Enroll status (Pending / Enrolled / Revoked).

This page does not manage workload placement, pipeline assignment, or runtime scheduling.

Prerequisite: engine package on the host

Install the nested Motion Engine package, then use this page to Create the Core and Enroll code. See Installation — padas-motion → Enroll the engine.

You do not paste a token into the Cores form. After enrollment, the console authenticates to the engine automatically.

Cores list page

Open Services → Cores (/cores). Use Create to add a row; use row Actions for view, edit, clone, delete, Enroll code, or Rotate & enroll code. Column filters sit under the headers; the footer shows totals and paging.

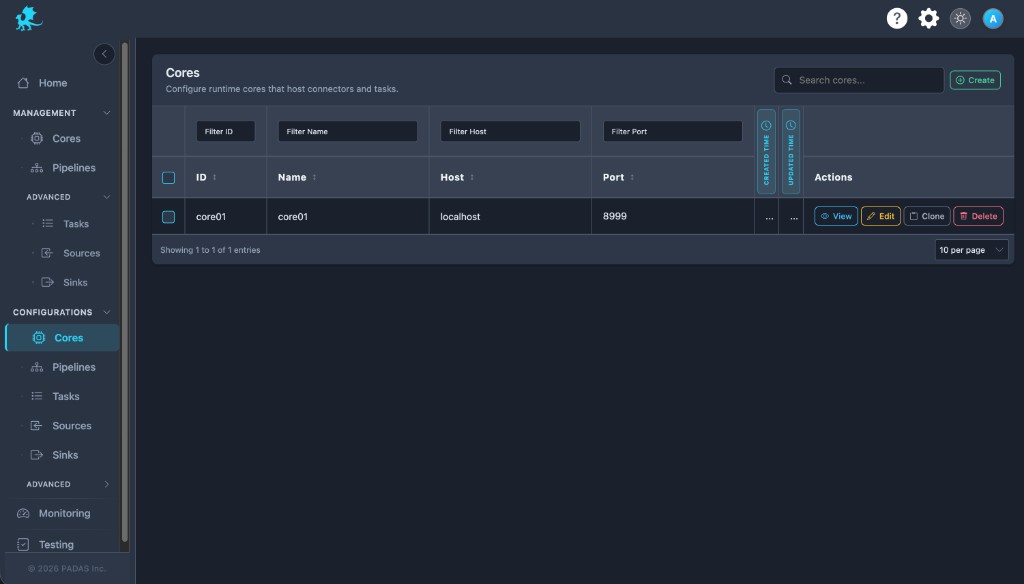

The registered Cores list.

On these Configurations screens the layout is the same: Search and Create in the toolbar, Download / Upload for registry JSON (a full bundle can be imported from any tab), then a grid with filters on the row under the headers.

Each row has View (read-only), Edit, Clone, and Delete. Select multiple rows when you need bulk delete. Created and Updated time may show as narrow strips; use the control at the side of the table to expand or collapse those columns.

Column	Description
ID	Stable identifier (also the S2S client_id).
Name	Display label chosen at registration.
Host	Hostname or IP the console uses for the engine API.
Port	Engine API port (typically 8999).
Enroll	Pending until padas enroll succeeds; then Enrolled.
Created Time / Updated Time	Row create and last update timestamps.
Actions	View, Edit, Clone, Delete, Enroll code (pending), Rotate & enroll code (enrolled).

Create and enroll

1. Install the engine package on the host (Installation — padas-motion).
2. Open Services → Cores and choose Create.
3. Enter Core Name, Host, and Port. Optionally add a Description via + Add description. Save — the console also registers the service client (client_id = core id).
4. On the row: Enroll code. Copy the CLI from the toast and run padas enroll on the engine host (code ~15 min, single-use).
5. After enroll succeeds, Enroll shows Enrolled. Start the engine, then follow Verification.

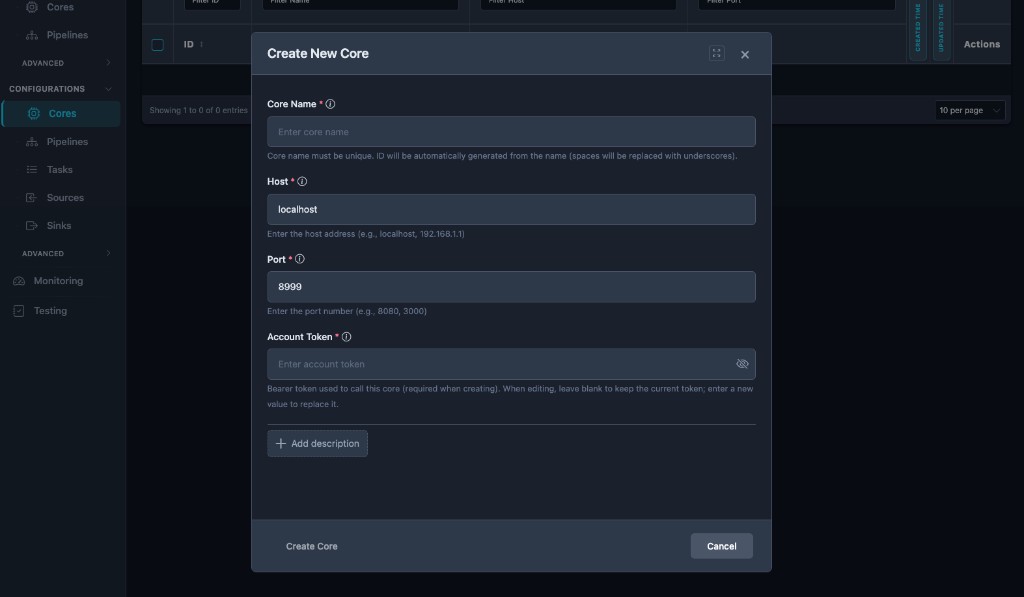

The Create Core form (name, host, port).

Field	Role
Core Name	Unique label; drives display name and a derived row id (and enroll client_id). Immutable after create.
Host	Engine API hostname or IP as seen from the console host (default in the form is often localhost).
Port	Engine API port; must match engine configuration (default 8999).
Description	Optional operator notes.

Field	Create	Edit
Core Name	Required	Read-only
Host	Required	Editable
Port	Required	Editable

Connectivity and authentication

The console calls each registered engine’s HTTPS API at https://<host>:<port>/api/v1/... (or http:// when engine TLS is off). Host and Port must match that engine’s bind and TLS settings (Motion Engine TOML).

Deployment	Host guidance
console and engine on the same machine	localhost or 127.0.0.1 is usually correct.
console in Docker / Kubernetes, engine on the host	Do not use 127.0.0.1 from inside the container for the host’s engine. Use a LAN IP, host.docker.internal where supported, or a DNS name the pod can resolve.
TLS	If the engine uses a self-signed certificate, the console must trust it—otherwise deploy or status checks fail. Enrollment seeds trust on the engine host during setup.
Firewall	Allow inbound to the engine API port (default 8999) from the console host or pod network, not only from an operator laptop.

Authentication (automatic)

After enrollment, the engine stores the credentials the console uses for API calls. Operators register host and port on Services → Cores and complete Enroll code there. If deploy or monitoring fails with authentication errors, confirm enrollment completed successfully and the engine was restarted after enroll.

Verification

After you save a Core registration:

1. Save the row and wait for the console to persist it.
2. From a host on the same network path as the console, confirm TCP/TLS reachability to https://<host>:<port>.
3. In the console, open Home or Management → Cores and confirm the row shows expected health or status for your version.
4. Optionally call GET /api/v1/status from the console host if you have API access for debugging.

End-to-end traffic after registration: Run a sample pipeline.

For multiple Cores, use a distinct Core Name per row and the correct Host / Port per instance.

Troubleshooting

See Troubleshooting & Logs → Padas UI registration and engine connectivity for the consolidated symptom table.

Related reading

• Install Padas Motion — install and enroll
• Run a sample pipeline → Register a Core
• Troubleshooting & Logs → leftover API objects — delete API-created engine registry objects before UI import if needed
• Motion Engine TOML — API port, TLS
• Security
• Naming conventions — registry object naming (separate from Core registration labels)
